Machining centerTHEOREMA
BR 3000 SPECIAL
Machining center
THEOREMA
BR 3000 SPECIAL
Estado
Usado
Ubicación
Cantù

Datos básicos
- Descripción de la máquina:
- Machining center
- Fabricante:
- THEOREMA
- Modelo:
- BR 3000 SPECIAL
- Estado:
- bueno (usado)
Precio y ubicación
- Ubicación:
- VIA LARIO 23, 22063 CANTU' - COMO, Italia

Llamar
Detalles de la oferta
- ID del anuncio:
- A173-70483
- número de referencia:
- Code: 0409
- Actualización:
- última actualización el 03.09.2026
Descripción
Code: 0409
Brand: THEOREMA
Model: BR 3000 SPECIAL - CE Standard
CNC boring and pantograph working centre with 3 controlled axis for furniture, kitchens, bathroom furniture, panels, doors and miscellaneous - CE standard
Technical data:
Minimum overall dimensions
Useful length X axis mm 3000
Bjdpfouwdnxox Amaeww
Useful length Y axis mm 1300
X axis speed mt/min 24
Y axis speed mt/min 24
Z axis stroke mm 65
Max panel thickness mm 65

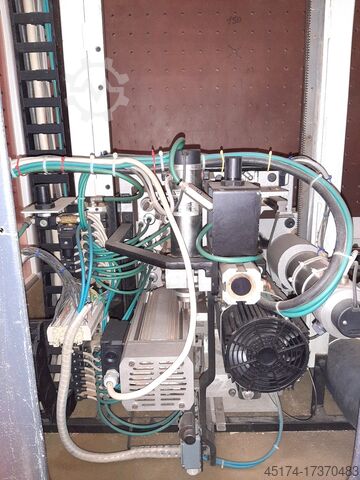

Boring unit with n° 18 spindles - Right-left drill chuck diameter mm 10 - Rpm 4000
Pantograph with pneumatic tool release - Motor Hp 7,5 - Rpm 0/18000 - Inverter for spindle Kw 5,5
Nesting worktable
Suction cups mm 150 x 150
Rapid panel positioning
Optimisation of the drilling path
Specularity of drilling and milling cycles
Interpolation on three X-Y-Z axis
Vacuum pump cubic metres 100
Compressed air atm 6
Overall dimensions: mm 4400 x 1700 x 2400 h
Weight kg 1200
MACHINE SOLD UNDER THE CONDITIONS IN WHICH IT IS FOUND NOT RECONDITIONED
Brand: THEOREMA
Model: BR 3000 SPECIAL - CE Standard
CNC boring and pantograph working centre with 3 controlled axis for furniture, kitchens, bathroom furniture, panels, doors and miscellaneous - CE standard
Technical data:
Minimum overall dimensions
Useful length X axis mm 3000
Bjdpfouwdnxox Amaeww
Useful length Y axis mm 1300
X axis speed mt/min 24
Y axis speed mt/min 24
Z axis stroke mm 65
Max panel thickness mm 65
Boring unit with n° 18 spindles - Right-left drill chuck diameter mm 10 - Rpm 4000
Pantograph with pneumatic tool release - Motor Hp 7,5 - Rpm 0/18000 - Inverter for spindle Kw 5,5
Nesting worktable
Suction cups mm 150 x 150
Rapid panel positioning
Optimisation of the drilling path
Specularity of drilling and milling cycles
Interpolation on three X-Y-Z axis
Vacuum pump cubic metres 100
Compressed air atm 6
Overall dimensions: mm 4400 x 1700 x 2400 h
Weight kg 1200
MACHINE SOLD UNDER THE CONDITIONS IN WHICH IT IS FOUND NOT RECONDITIONED
